    • Heating Underfloor Heating Underfloor Heating Accessories Electrothermic Actuator - 230V

    Electrothermic Actuator - 230V

    WHS-M-S3-ACT230

    12% OFF

    £26.40

    £22.00

    £23.34 inc. VAT

    £19.45 ex. VAT

     Typically available in 3-5 days

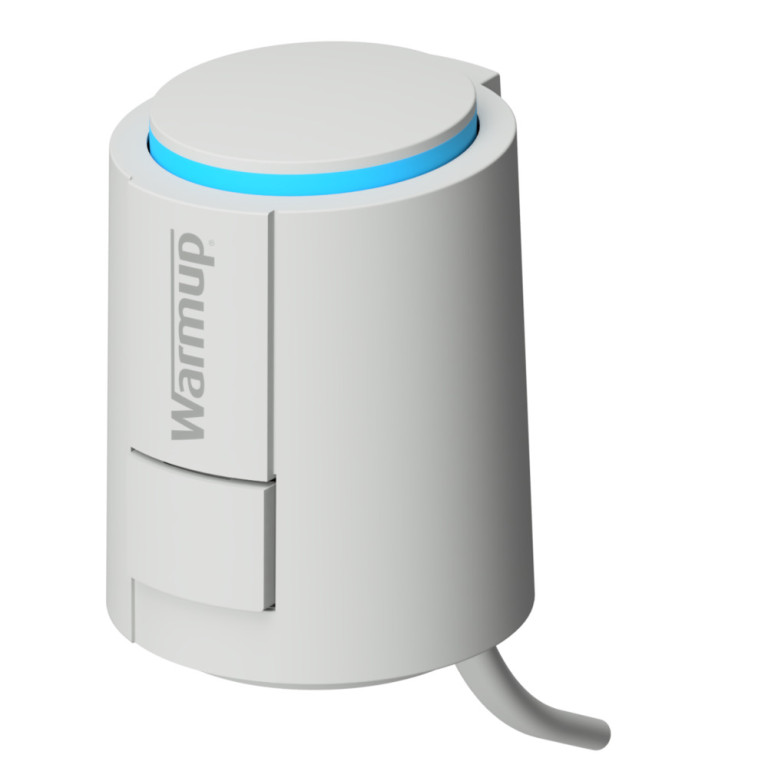

    • The Warmup Electrothermic Actuators are used in combination with the Warmup S3 Manifolds to control the circuit valves. The actuators are supplied ‘latched open’ so they can be easily mounted and commissioned. In this condition, the indicator disc is only marginally raised, with no blue visible. Upon completing their first full power cycle the actuator then operates in a normally closed manner, opening the valve when power is supplied based on heating demand. The disc on the top of the actuator indicates its current status; Raised (Blue) = valve open, Lowered = valve closed.

      • With a separate mounting collar and actuator, it is easy to screw the collar on before simply clipping the actuator in place
      • At just 1W operating power, this 5th generation actuator is extremely energy efficient
      • Helps Control Hydronic Floor Heating Circuits
      • The clear, blue disc on top of the actuator provides visibility at any angle and tactile indication in hard to see locations
      • They are supplied ‘latched open’ for easy ‘click’ mounting out of the box
      Brand
      Warmup
      Category
      Manifold
      Range
      Water Systems
      Product Code
      WHS-M-S3-ACT230
      Main Colour
      White
      Weight
      120 g
      Length
      50 mm
      Width
      75 mm
      Height
      90 mm
      GTIN
      5034526010590
